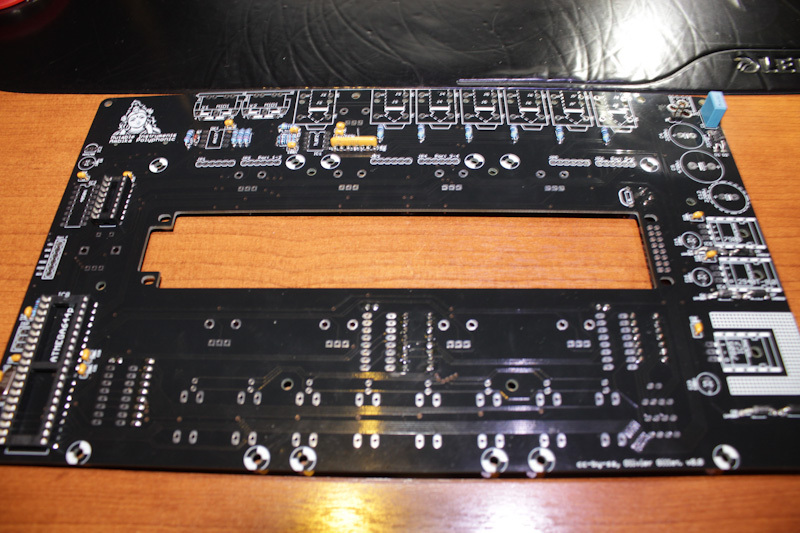

Had plenty of practice on the voice card. Let’s start with the motherboard.

ambika synth motherboard mobo loupe

This is a very well made and sturdy PCB ! Well it needs to as it acts as the ‘chassis’ so to speak for the screen, knobs, buttons, I/O etc …

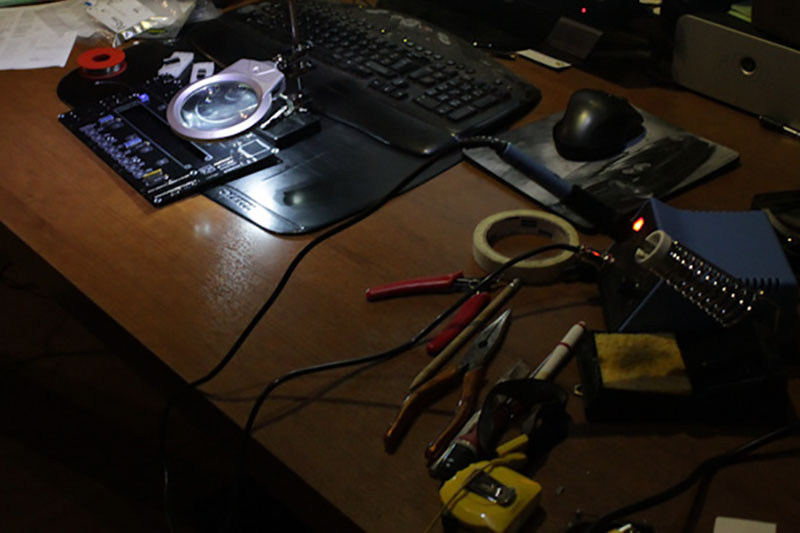

electronics workbench

my work desk, tidy as always 😉

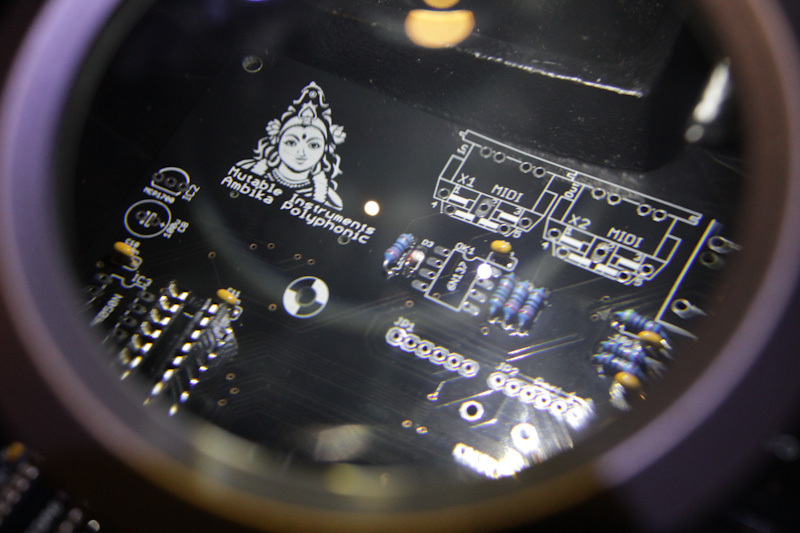

ambika synth mutable instruments motherboard mobo loupe

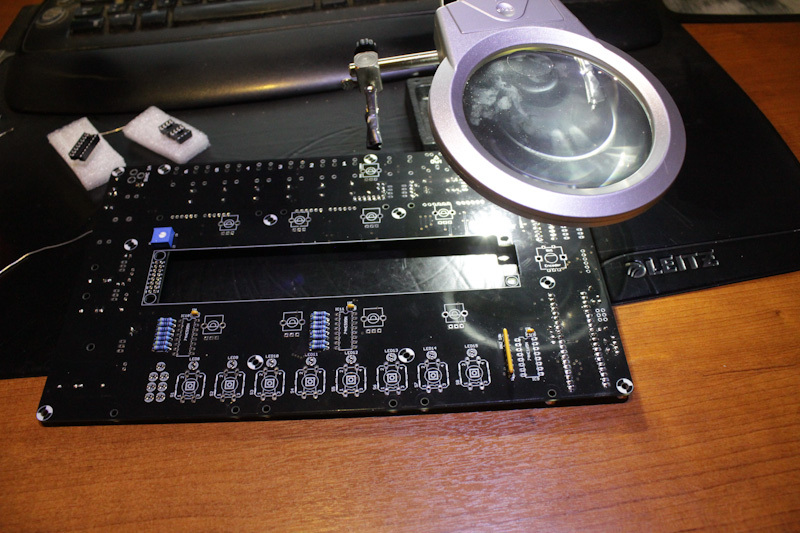

this loupe with led light is sooo handy ! And you can continue soldering even in bad light .. as in very late 😉

ambika synth motherboard mobo
